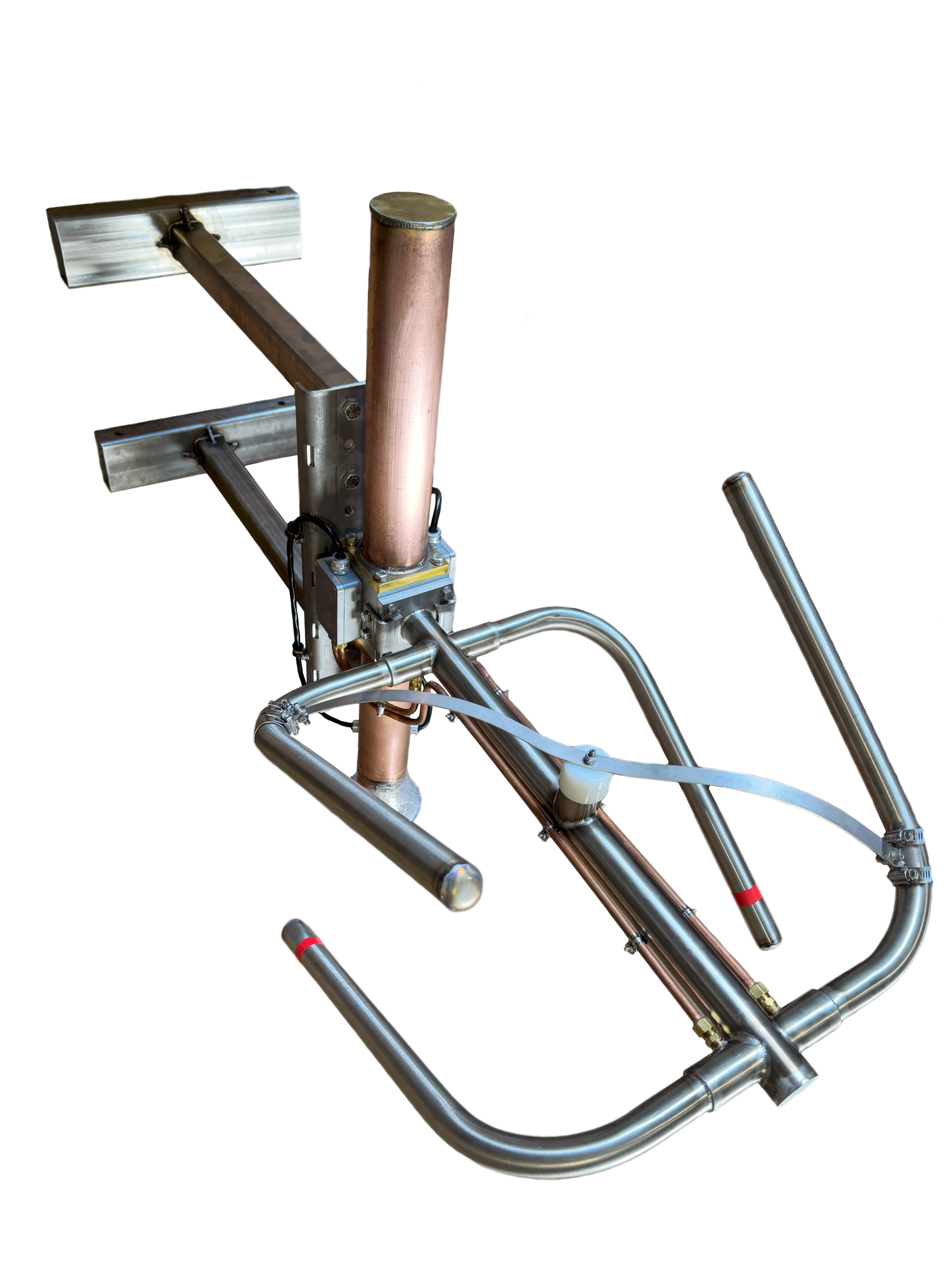

6814

,

Features

  • Pressurization Needed
  • Circular or Elliptical Polarization
  • High Power Input Ratings
  • Directional Systems
  • Radomes and Deicers Available
  • Allows multiplexing of closely-spaced stations (<2.2 MHz separation)



Specifications
Model 6814
Frequency Range 87 – 108 MHz
VSWR >1.05:1 at Center Frequency, 1.1:1 ± 200 kHz from center frequency, 1.15:1 or better up to ±400 kHz
Polarization “Circular”, “Elliptical”
Input Power Rating Up to 60 kW (Low Power), Up to 90 kW (High Power)
Azimuth Horizontal component + 1.5 dB on Pole
Connectors “EIA: 1-5/8’’, 3-1/8’’ EIA, 4-1/16’’, 6-1/8’’”

SKU: 6815-1

Description

Features

  • Pressurization Needed
  • Circular or Elliptical Polarization
  • High Power Input Ratings
  • Directional Systems
  • Radomes and Deicers Available
  • Allows multiplexing of closely-spaced stations (<2.2 MHz separation)



Specifications
Model 6814
Frequency Range 87 – 108 MHz
VSWR >1.05:1 at Center Frequency, 1.1:1 ± 200 kHz from center frequency, 1.15:1 or better up to ±400 kHz
Polarization “Circular”, “Elliptical”
Input Power Rating Up to 60 kW (Low Power), Up to 90 kW (High Power)
Azimuth Horizontal component + 1.5 dB on Pole
Connectors “EIA: 1-5/8’’, 3-1/8’’ EIA, 4-1/16’’, 6-1/8’’”

Reviews

There are no reviews yet.

Be the first to review “6814”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Related products

Electrical Specifications
Options
Installation & Mounting
Typical Patterns

6814 Medium Power

Model (Number of Bays)Full-wave SpacedHalf-wave Spaced
Power RatingPower GainPower RatingPower Gain
kWPowerdBkWPowerdB
6814-1120.45-3.43---
6814-2200.99-0.04150.71-1.51
6814-3381.561.92151.020.08
6814-4382.143.3151.321.19
6814-5382.734.36151.622.1
6814-6383.335.22151.922.84
6814-7383.935.94152.273.48
6814-8384.536.56152.544.04

6814 High Power

Model (Number of Bays)Full-wave SpacedHalf-wave Spaced
Power RatingPower GainPower RatingPower Gain
kWPowerdBkWPowerdB
6814-HP-1320.46-3.3732--
6814-HP-2320.95-0.22320.73-1.36
6814-HP-3321.551.9321.020.08
6814-HP-4402.133.28401.351.3
6814-HP-5402.724.35401.632.12
6814-HP-6403.255.12401.892.76
6814-HP-7403.95.91402.193.4
6814-HP-8404.286.31402.614.17
6814-HP-9405.057.03402.794.46
6814-HP-10405.547.44403.144.97
6814-HP-11406.257.96403.395.3
6814-HP-12406.578.18403.75.68

NOTES:

  • > 40 kW ratings available upon engineering review.
  • Includes standard mounting brackets and attachment hardware.
  • Antenna weight and wind load are approximate values for a typical structure. Final design loads may vary for the specific application

Disclaimer: Specifications are subject to change without notice. Information may be changed or updated without notice. American Amplifier Technologies may also make improvements and/or changes in the products and/or pricing described at any time without notice.

Options:

  • Radome
  • Deicer
  • Beam Tilt
  • Null Fill
  • Special H/V Ratio
  • Custom Spacing
  • Center Feed
  • Broadbanding for Dual Frequency
  • Anti-Rotation Arm
  • Pressure Relief Valve
  • Custom Mounts

Replacement Parts:

  • Radome
  • Single Bay
  • Pressure Relief Valve
  • Standard Mount

Model 6814 Antenna Weight & Wind Load

PLEASE CONTACT THE FACTORY FOR SITE SPECIFIC WEIGHT AND WIND LOADING FOR YOUR 6814 ANTENNA CONFIGURATION.

Typical Elevation Patterns
For patterns refer to materials provided as part of system quote or contact your sales rep for more details.
